表紙の図説明

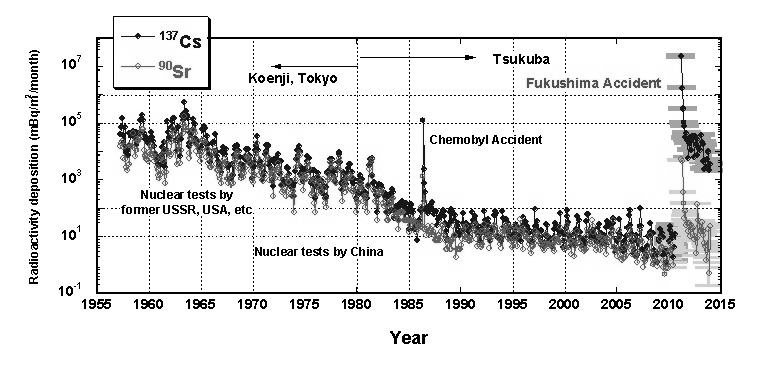

福島第一原発事故の実態把握について、2011年3月の事故以降で確定できた90Srおよび137Cs月間降下量を誤差と併せてプロットしています。134Csは事故直後は137Csとほぼ等量降下していますから、放射性セシウム全体ではこのプロットのほぼ倍量となります。ただし、90Sr、137Csはどちらもおよそ30年の半減期で減衰しますが、134Csはおよそ2年で半減します。図示した誤差は計測の統計誤差で、1シグマです。測定誤差は本来全ての測定値につき表示すべきですが、グラフが見づらくなるため、従来はあえて表示してきませんでした。

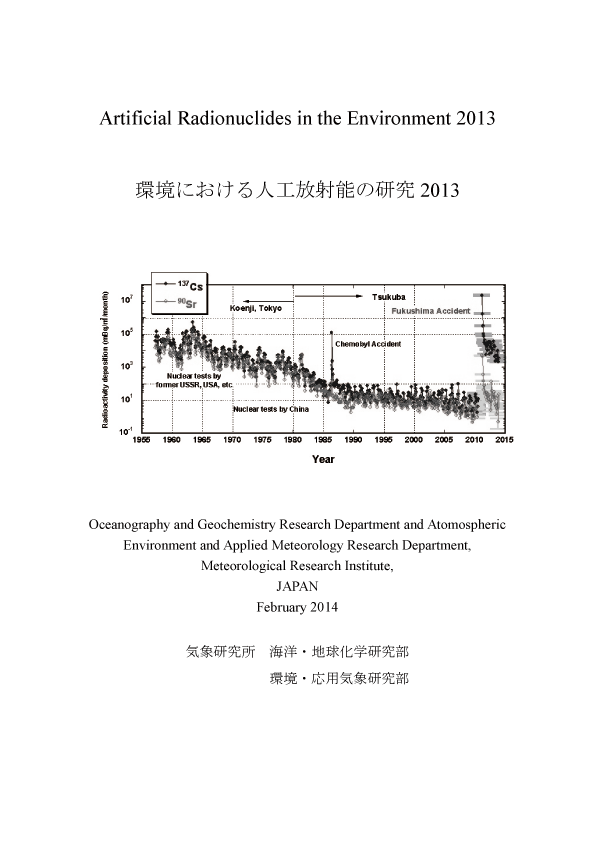

A caption of the cover art

Given the social as well as scientific concerns about local contamination caused by the Fukushima Dai-ichi Nuclear Power Plant accident, the estimate of the 137Cs deposition at the MRI, Tsukuba is plotted for a few years after the accident in March, 2011 in the figure. The estimate was computed based on the value obtained by measuring the aliquot of the sample water (wet + dry depositions). Moreover -- since 134Cs deposited in almost comparable amount -- the total radioactive cesium soon after the accident becomes mostly double. Although 90Sr and 137Cs decay gradually with a half-life of 30 years, 134Cs decays more quickly with a half-life of about 2.0 years. An error depicted is a statistical one for the activity measurement (1σ). Although the error should have been displayed essentially, since it is hard to see a graph with many errors, the errors have not been displayed conventionally.




Note on COPYRIGHT
Permission to use any scientific material (text as well as figures) in this homepage of the Geochemical Res. Dep./MRI should be obtained from the authors.
